Contact

Tel:+361 293 4459

AFS:LHBPYNYN

Email:pubsdo@hungarocontrol.hu

URL:www.hungarocontrol.hu

HungaroControl Pte. Ltd. Co.
Hungarian Air Navigation Services
Aeronautical Information Service
H-1675 Budapest, POB 80

AIP Supplement for HUNGARY

HUNGAROCONTROL

AIP SUP

002/2023

Effective from 26 JUN 2023 to 31 MAR 2024

Published on 26 JUN 2023

  Debrecen International Airport (LHDC) Demolition works

1.   GENERAL

The Demolition of disused paved surfaces at LHDC:

2.   PERIOD OF DEMOLITION WORKS

The demolition project starts in Q2 2023 and the competition is scheduled for the Q1 2024. The works are phased and the relevant information for each phase will be disseminated by AIP supplement and activated by NOTAM. The

may be published by NOTAM.

3.   PHASE A

Commence and actual finish of the phase will be notified by NOTAM.

No movement areas are involved in this phase.

3.1   TRAFFIC INFORMATION AND RESTRICTIONS

No traffic restrictions are expected at phase A.

4.   PHASE B

Commence and actual finish of the phase will be notified by NOTAM.

Involved areas: TWY A, TWY B, APRON.

4.1   TRAFFIC INFORMATION AND RESTRICTIONS

Restrictions on TWY A:

  • TWY A is CLOSED to aircraft MON-SAT 0430-1700;
  • The usable TWY is TWY B.

5.   PHASE C

Commence and actual finish of the phase will be notified by NOTAM.

Involved areas: RWY 04R/22L, TWY A.

5.1   TRAFFIC INFORMATION AND RESTRICTIONS

Restrictions on TWY A:

  • TWY A is CLOSED to aircraft MON-SAT 0430-1700;
  • The usable TWY is TWY B.

Restrictions on RWY 04R/22L:

  • RWY 04R is CLOSED to take-off of ICAO CODE C aircraft;
  • RWY 04R/22L is CLOSED to aircraft MON-SAT 0430-1700.

6.   PHASE D

Commence and actual finish of the phase will be notified by NOTAM.

Involved areas: RWY 04R/22L, TWY A.

6.1   TRAFFIC INFORMATION AND RESTRICTIONS

Restrictions on TWY A:

  • TWY A is CLOSED to aircraft MON-SAT 0430-1700;
  • The usable TWY is TWY B.

Restrictions on RWY 04R/22L:

  • RWY 22L is CLOSED to take-off of ICAO CODE C aircraft;
  • RWY 04R/22L is CLOSED to aircraft MON-SAT 0430-1700.

7.   PHASE E

Commence and actual finish of the phase will be notified by NOTAM.

Involved areas: RWY 04R/22L.

7.1   TRAFFIC INFORMATION AND RESTRICTIONS

Restrictions on RWY 04R/22L:

  • RWY 22L is CLOSED to take-off of ICAO CODE C aircraft;
  • RWY 04R/22L is CLOSED to aircraft MON-SAT 0430-1700.

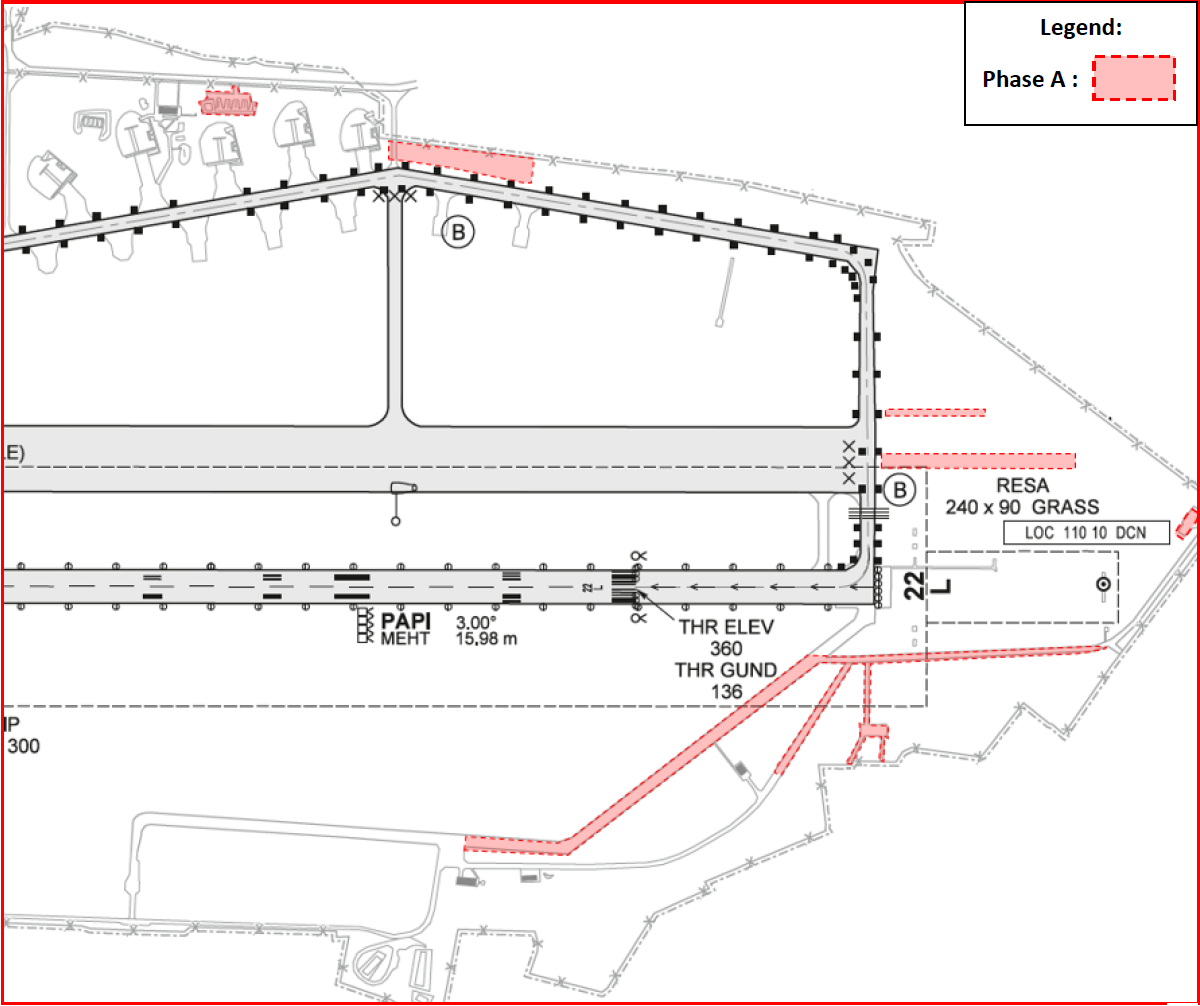

Figure 1.  Demolition works phase A
../graphics/eSUP/image01.png

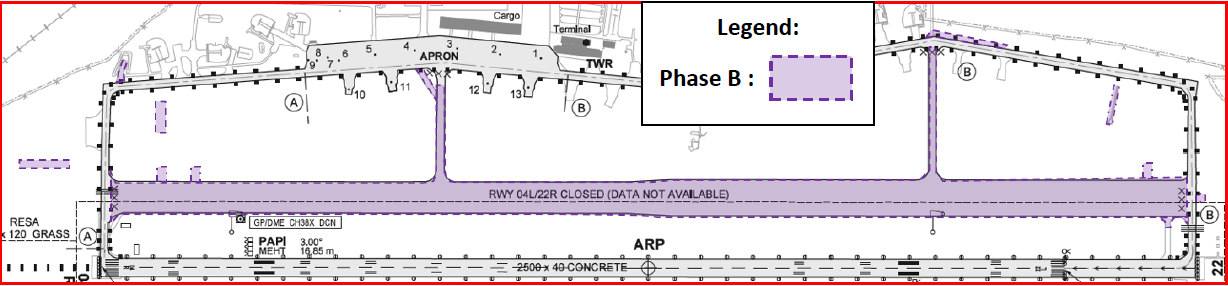

Figure 2.  Demolition works phase B
../graphics/eSUP/image02.png

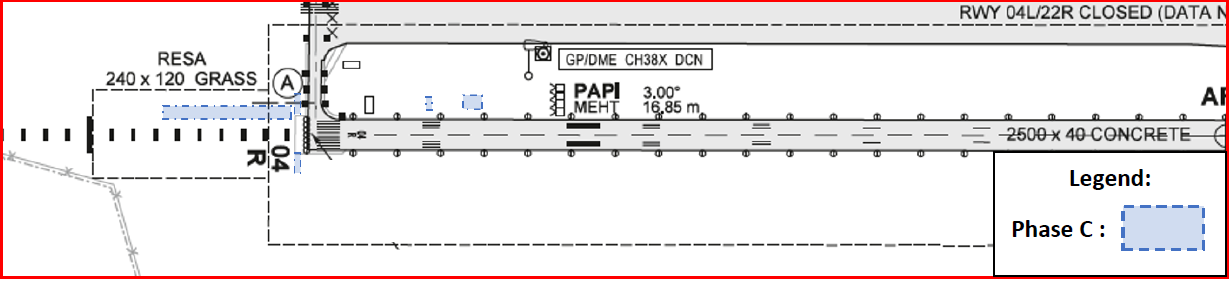

Figure 3.  Demolition works phase C
../graphics/eSUP/image03.png

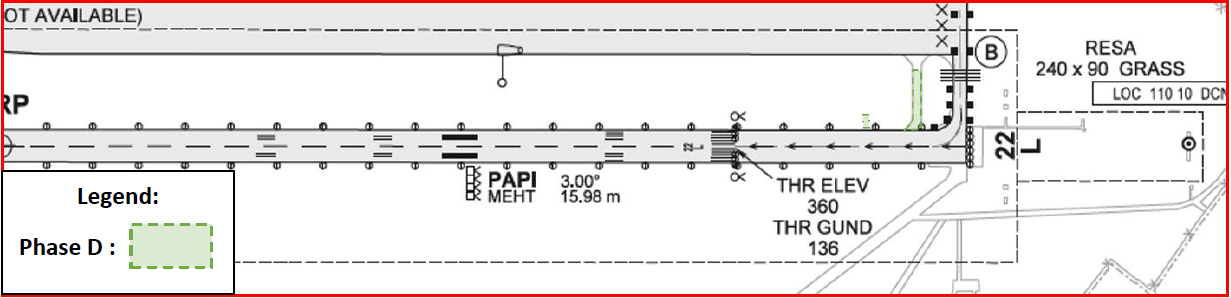

Figure 4.  Demolition works phase D
../graphics/eSUP/image04.png

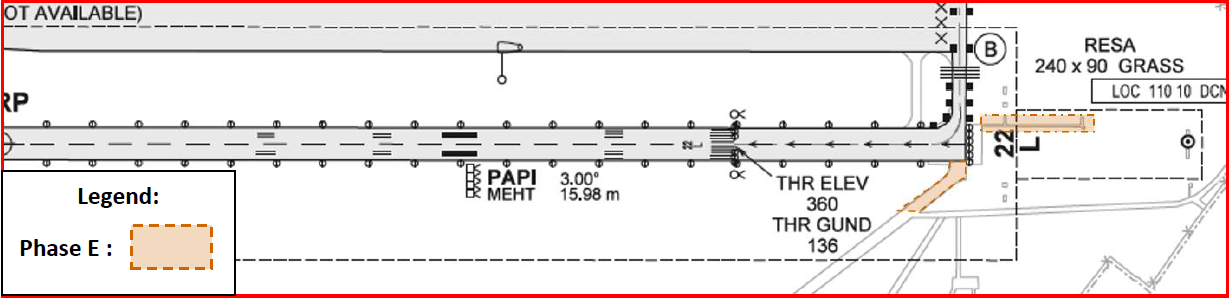

Figure 5.  Demolition works phase E
../graphics/eSUP/image05.png
